This guide provides detailed instructions for installing an off-road LED light bar on a vehicle. It covers preparation, mounting, wiring, and testing to ensure a secure, functional setup. Suitable for DIY enthusiasts with basic mechanical skills, the process takes approximately 2 to 4 hours. Follow this guide carefully to avoid damage, electrical issues, or improper mounting.

Difficulty: Intermediate | Time: 2-4 hours

What You’ll Need

Tools & Materials:

• Socket set and ratchet
• Drill and drill bits
• Wire strippers and crimping tool
• Screwdrivers
• Electrical tape
• Zip ties
• Multimeter

Knowledge:

• Basic understanding of vehicle electrical systems
• Ability to use hand tools
• Knowledge of wiring and electrical connections

Ensure the vehicle is parked on a level surface, with the parking brake engaged. Disconnect the negative terminal of the vehicle’s battery before starting wiring to prevent shorts or shocks.

As an Amazon Associate we earn from qualifying purchases.

Before You Start

Check the compatibility of the LED light bar with your vehicle’s mounting points and electrical system. Confirm that you have all necessary parts and tools before beginning. Be aware of local laws regarding off-road lighting, and ensure the light bar is rated for outdoor use and meets legal brightness limits.

Step-by-Step Instructions

Step 1: Select an appropriate mounting location

Identify a sturdy, accessible point on the vehicle’s front bumper, grille, or roof rack that can support the weight of the light bar. Ensure the location allows for proper alignment and does not obstruct other vehicle components or sensors. Use a measuring tape to mark the mounting points for even placement.

Tip: Choose a location with sufficient clearance from the hood, radiator, or other parts to prevent heat buildup and vibration damage.

Check: The mounting location is secure, level, and provides enough space for the light bar and wiring without obstruction.

Step 2: Attach the mounting brackets to the vehicle

Position the mounting brackets onto the chosen location, aligning with the marks made earlier. Use a drill with the appropriate bit to make holes if necessary. Secure the brackets with bolts or screws, tightening firmly but not over-tightening to avoid damage.

Tip: Use anti-corrosion washers or sealant if mounting in a humid or off-road environment to prevent rust.

Check: Brackets are firmly attached, level, and capable of supporting the weight of the LED light bar.

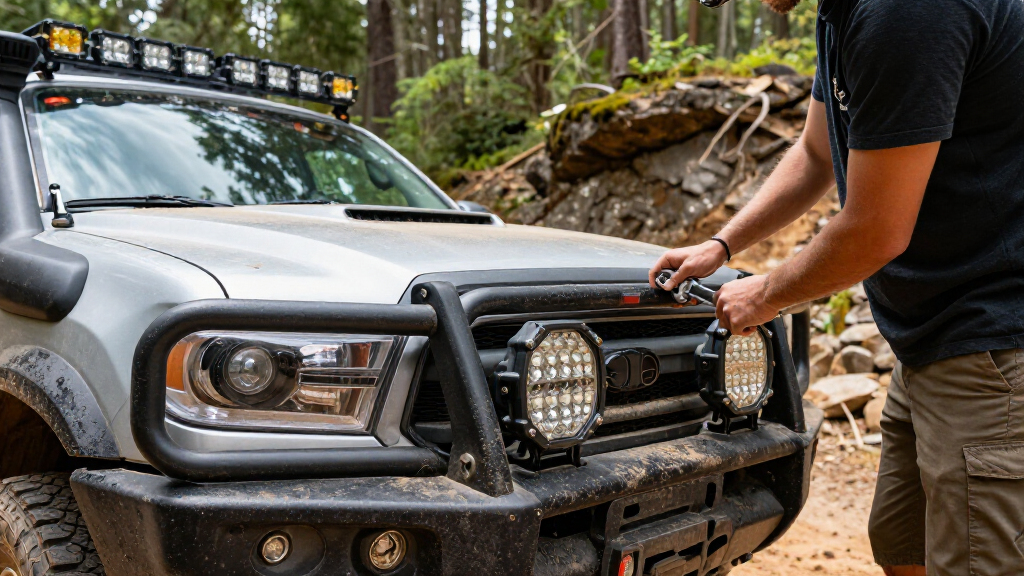

Step 3: Mount the LED light bar onto the brackets

Lift the LED light bar and align its mounting points with the brackets. Secure it using the provided bolts or clamps, tightening each evenly in a cross pattern to ensure a secure fit.

Tip: Double-check the alignment before tightening fully to ensure the light bar is straight and centered.

Check: The light bar is securely mounted, does not wobble, and is correctly aligned for optimal illumination.

Step 4: Plan the wiring route

Trace a path from the mounting location to the vehicle’s engine bay, avoiding sharp edges, moving parts, or areas prone to water exposure. Use zip ties to hold the wiring along existing vehicle wiring or structural components, keeping it neat and protected.

Tip: Leave some slack near the light bar for adjustments and vibration absorption. Avoid pinching or bending wires sharply.

Check: Wiring is neatly routed, secured, and free of tight bends or potential contact points.

Step 5: Connect the wiring to the power source

Identify the positive and negative wires from the light bar. Connect the positive wire to a switched power source, such as the fuse box or a relay that turns on with the vehicle lights. Connect the negative wire to a clean, bare metal grounding point on the vehicle chassis. Use crimp connectors and electrical tape to secure connections.

Tip: Use a multimeter to verify power at the chosen switch or fuse before connecting the light bar.

Check: The wiring connections are secure, insulated, and your multimeter confirms voltage at the switch or fuse point.

Step 6: Install a switch or relay (if applicable)

Install the switch or relay according to the manufacturer’s instructions. Mount the switch in an accessible location inside the vehicle and connect it to the power source and the light bar, following the wiring schematic provided with the components.

Tip: Use a relay for high-power light bars to prevent wiring overload and protect your vehicle’s electrical system.

Check: The switch or relay is correctly wired, mounted securely, and functional when tested.

Step 7: Test the installation

Reconnect the vehicle’s negative battery terminal. Turn on the vehicle or switch the auxiliary power to test if the LED light bar illuminates properly. Check for flickering, dimming, or improper operation, and verify the light pattern and brightness.

Tip: Adjust the angle of the light bar if necessary for optimal illumination and minimal glare.

Check: The light bar turns on reliably, shines brightly, and is properly aligned without flickering or loose connections.

Common Mistakes to Avoid

• Mounting the light bar in a location prone to vibrations or water ingress — Choose a sturdy, protected mounting point and use sealing washers or sealant to prevent water entry and reduce vibration.
• Incorrect wiring connections, causing short circuits or failure — Always verify polarity before connecting, use appropriate fuses, and secure all connections with crimp terminals and electrical tape.
• Poor alignment of the light bar, resulting in uneven illumination or glare — Temporarily mount the light bar loosely, then adjust for proper alignment before fully tightening the bolts.

Troubleshooting

Problem: Light bar does not turn on

Solution: Check all wiring connections for secure contact, verify power at the switch or fuse, and confirm the ground connection is solid.

Problem: Flickering or dim light output

Solution: Inspect wiring for loose connections or damage, ensure the relay (if used) is functioning correctly, and verify the power source is stable.

Problem: Light bar is misaligned or tilted

Solution: Loosen mounting bolts slightly, adjust the angle, then retighten securely. Confirm the brackets are firmly attached to the vehicle.

What Success Looks Like

The LED light bar is securely mounted, properly aligned for maximum illumination, wired correctly with no flickering, and turns on reliably when activated. The wiring is neat, protected from the elements, and the vehicle’s electrical system functions normally without issues.

Next Steps

Secure all wiring with additional zip ties or clips for long-term durability. Test the light bar during off-road conditions to verify performance. Regularly inspect the mounting and wiring for signs of wear or damage, especially after rough use. Consider adding additional lights or upgrading wiring for higher power loads as needed.

Frequently Asked Questions

Can I install an off-road LED light bar on any vehicle?

Most vehicles can be equipped with an LED light bar, but ensure there is enough space for mounting and wiring. Check your vehicle’s electrical capacity and local laws before installation.

Do I need a relay or fuse for the light bar?

Yes, using a relay protects your vehicle’s electrical system from overload. A fuse prevents damage from short circuits. Follow manufacturer recommendations for fuse ratings and relay specifications.

Can I connect the LED light bar directly to the vehicle’s wiring without a switch?

It is possible, but not recommended. Installing a dedicated switch makes operation easier and prevents accidental draining of the battery. Use a switch rated for the load.

How do I prevent water damage to the wiring?

Use waterproof connectors, seal all exposed connections with electrical tape or heat-shrink tubing, and route wiring away from water-prone areas.
